Technical Documentation

8/24/2006 15:56

Crimp Contact Name :

Target Crimp Height :

1.6000 +/- 0.0500

Terminal Part Number :

F8VB-14474-BA

Actual Crimp Height :

1.6917

Applicator Number :

Target Crimp Width :

0.0000 +/- 0.0000

Terminal Manufacturer :

Interlock / FCI

Actual Crimp Width :

2.4811

Characteristics :

CH / CW Ratio :

68.18%

Operator :

Wire Gauge :

S58094 (14AWG)

Wire Combination :

14 AWG pink / blk stripe

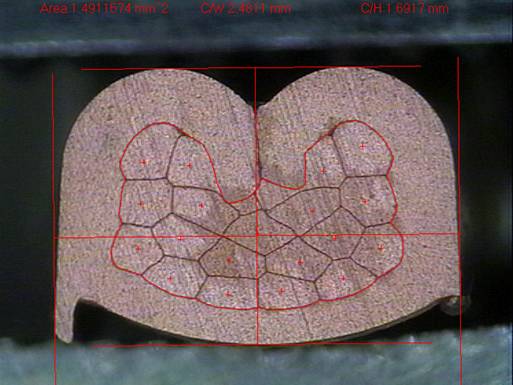

Area after crimping :

1.4911574

Crimp Compression :

23.32%

Target Strand Count :

19

Target Pull-Test Min :

180

Actual Strand Count :

19

Target Pull-Test Max :

Actual Pull-Test :

287.98N

Problem Description :
